Project Management

Introduction

GC Project provides support for organizing and reporting on the sets of data developed during GCxGC analyses. GC Project is invoked from the desktop icon, from the Microsoft Windows Programs menu, or from the GC Image directory.

The GC Project graphical user-interface (GUI) is pictured in Figure 1. At the top of the interface are the title bar, menu bar, and tool bar. The lower-left pane contains the Project Tree that visualizes and provides access to the project components. The lower-right pane presents Component Information about the user-selected components and provides access to component operations.

Figure 1: The GC Project graphical user-interface (GUI).

The user creates a new project clicking the New Project button on the tool bar or from the File menu of GC Project. The user specifies the directory location and the project name. GC Project creates a new folder with the project name in the user-specified directory. In the project directory, GC Project creates a GC Projects file (.gcp extension) and several subdirectories (described below).

The File menu supports saving a project, opening a previously saved project (from the .gcp file), closing a project (without saving), and exiting. The tool bar has corresponding buttons for saving, opening, and closing projects.

The Project Tree presents subtrees for each of several components of a project:

Vials - mixtures that are analyzed
Runs - unprocessed chromatograms
Processing - files for processing chromatograms
Images - processed chromatograms
Overview - an overview of the vials, runs, and images
Batches - sets of processed chromatograms
Reports - formal presentations about processed chromatograms

Each of these components and the operations supported by GC Project are described in this chapter and chapter Reports.

Vials

The Vial structure encapsulates basic data and metadata about the mixtures analyzed by GCxGC. For example, the ASTM D2887 analysis may involve two mixtures:

A calibration mixture comprised of a few known chemicals with known boiling points that is analyzed in order to calibrate the retention times to boiling points.
A sample mixture that is analyzed in order to estimate the boiling point distribution.

Just as the physical vial contains the actual chemical mixture, so the Vial data structure contains data and information about the mixture that is analyzed. The basic data about the vial includes a Composition Table of the known chemical compounds and the (relative or absolute) amounts. The vial metadata includes creator, date, and notes.

GC Project currently supports several operations on vials:

View All Vials in the Project
Create a Vial(s)
View Information About a Vial
Import the Composition Table for a Vial
Add a Compound and Amount to the Composition Table of Specific Vial

The Project Tree pane (lower-left) of GC Project contains a Vials node, as pictured in Figure 2. If the node has a '+', then it can be expanded by clicking to list the vials as leafs in the tree. If the node has a '-', then it can be collapsed so that the list of vials is not shown. If there is neither a '+' nor '-', then there are no vials in the project.

Figure 2: The Vials node in the Project Tree.

A user views the list of all vials in the project by clicking on the Vials node in the Project Tree. Then, the list of all vials is presented in the Component Information pane (lower-right), as in Figure 2. The list shows the name and status of each vial. Below the list of vials is a button to create a new vial(s). Additional functionality, such as controls for vial status, will be added in the future.

A user creates a new vial by clicking the Add Vial button below the list of vials. GC Project presents a vial creation popup, pictured in Figure 3, that allows the user to specify the root-name of the vial, a starting sequence number for the vial, the number of vials to be created (with the sequence number incremented for each new vial), and vial metadata. Once a new vial(s) is created, it is added to the list of vials in the vial list and is also added as a leaf node in the Project Tree under the Vials node.

Figure 3: The Add Vial(s) popup dialog.

A user views the information about a specific vial by clicking on the Project Tree leaf node corresponding to the desired vial. Then, data and metadata for the vial, including Composition Table, creator, date, notes, and status, are presented in the Component Information pane, as in Figure 4.

Figure 4: A Vial node in the Project Tree.

Below the vial information in the Component Information pane are two buttons for manipulating the Composition Table:

Import Composition to import a composition table from a file, replacing any current Composition Table, and
Add Record to add a record (with compound name and amount) to the Composition Table.

Additional functionality will be added in the future.

Currently, GC Project can import composition files in comma-separated value (CSV) text format with each line formatted as ",". For example, GC Project could import a file with:

benzene, 0.09
2-hexanone, 9.99

If the CSV file with the vial name exists when the vial is created, the user is queried with the option to import the file.

Clicking the Add Record button presents a popup dialog, pictured in Figure 5, in which the user types the compound name and amount.

Figure 5: The Add Record popup dialog to add a record to the composition table.

A typical process for creating a vial and importing its composition table follows. (The same process can be followed for creating multiple vials.)

Create or copy a CSV file containing the composition table for the vial into the Vials subdirectory (under the project directory).
Click on the Vials component in the Project Tree.
Click the Add Vial button below the list of vials in the Component Information pane. In the popup, provide the root-name, sequence number, and metadata for the vial.

At this point, if the CSV file has the same name as the vial, then the user confirms importation of the composition table and the process is complete. Once created, the new vial is listed in the Project Tree under Vials.

If the CSV file does not have the same name as the vial, two additional steps are necessary.

Click on the vial listed in the Project Tree under Vials. The information for the vial is listed in the Component Information pane.
Click on the Import Composition button. Select the file in the popup.

Runs

The Run structure encapsulates information about the raw chromatograms that are produced in a run (i.e., each run of the instrument creates a single chromatogram). The raw data for all of the chromatograms are stored in the Runs subdirectory and each chromatogram in the Runs subdirectory is listed in the Project Tree under the Runs component, as illustrated in Figure 6.

Figure 6: The Runs node in the Project Tree.

To fully incorporate a chromatogram into a project, the user must associate the run with a vial (created as described above). Each run is associated with a single vial, but a vial may have multiple runs from it. The color of the dot next to each chromatogram run in the Project Tree indicates whether or not an association has been made for that run. A red dot indicates that there is no vial association for the run and a green dot indicates there is a vial association.

Clicking on the Runs component of the Project Tree presents in the Component Information pane a table of runs that have been associated with a vial, as shown in Figure 6. Each associated run in the table has the data file of the chromatogram, the associated vial name, and a sequence number for the run. The sequence number is automatically assigned when the run is associated with the vial.

As pictured in Figure 6, the Component Information pane for Runs also contains a GUI for associating unassociated runs with specific vials. To make an association between a vial and one or more runs, select a vial from the list of vials, select a run from list of runs, and then click the Associate button. Then, the run is removed from the list of unassociated runs, the run is added to the table of associated runs (with vial name and sequence number), and the color of the run in the Project Tree is changed from red to green.

Processing and Images

After associating a run with a vial, the user can initiate processing of the chromatogram. To initiate processing a chromatogram, the user double-clicks on the chromatogram in the Project Tree. The GC Image interface for processing and analysis of GCxGC data opens and presents the user with the dialog for importing a chromatogram. In the import dialog, the user must supply the dimensions of the GCxGC data, may specify a configuration file, and may specify immediate processing (including background removal, blob detection, and template matching). The Processing subdirectory for the project is provided as a convenient location for configuration file(s), blob template(s), and graphics table(s) used in processing.

When it is invoked by GC Project to import a chromatogram, GC Image creates a processed image in the Images subdirectory and makes an association between the image and the run. Multiple processed images may be created for a single chromatogram run (e.g., to test different processing parameters), but each processed image is associated with a single chromatogram run. The processed images are named with an image sequence number for the run. For example, Cal01_Run03_Img02 is the name for the second image created for the third run from the vial named Cal01. All of the images in the project are listed under the Images node in the Project Tree, as illustrated in Figure 7. Clicking on the Images node in the Project Tree presents in the Component Information pane a table of images in the project with the status of each.

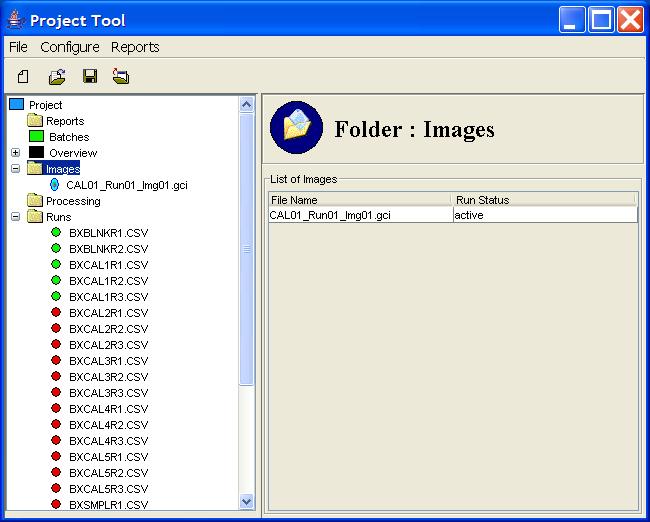

Figure 7: The Images node in the Project Tree.

Clicking on an image listed under the Images node in the Project Tree presents in the Component Information pane information about the specific image, such as its dimensions and an overview of the processing information, as shown in Figure 8. Double-clicking on an image listed under the Images node in the Project Tree opens the image in GC Image.

Figure 8: An Image node in the Project Tree.

Overview

The Overview in the Project Tree presents the hierarchy of vials, runs, and images, as pictured in Figure 9. A project may have one or more vials, each of which may have one or more runs, each of which may have one or more images. Clicking on the Overview node in the Project Tree presents in the Component Information pane a table of the vials in the project.

Figure 9: The Overview in the Project Tree.

Clicking on a vial listed under the Overview node in the Project Tree presents in the Component Information pane information about the specific vial, such as its composition table, and a table of the runs from the vial.

Clicking on a run listed under an Overview->Vial node in the Project Tree presents in the Component Information pane information about the specific run, including a table of images for the run.

Clicking on an image listed under an Overview->Vial->Run node in the Project Tree presents in the Component Information pane information about the specific image.

Double-clicking on an image listed under an Overview->Vial->Run node in the Project Tree opens the image in GC Image.

Batches and Reports

The end product of an analysis is typically a report on the processing of a set or batch of runs. GC Project provides tools for creating and managing batches and reports. These batch and reporting tools of GC Project are described in chapter Reports.
